TrackLED 5
Overview

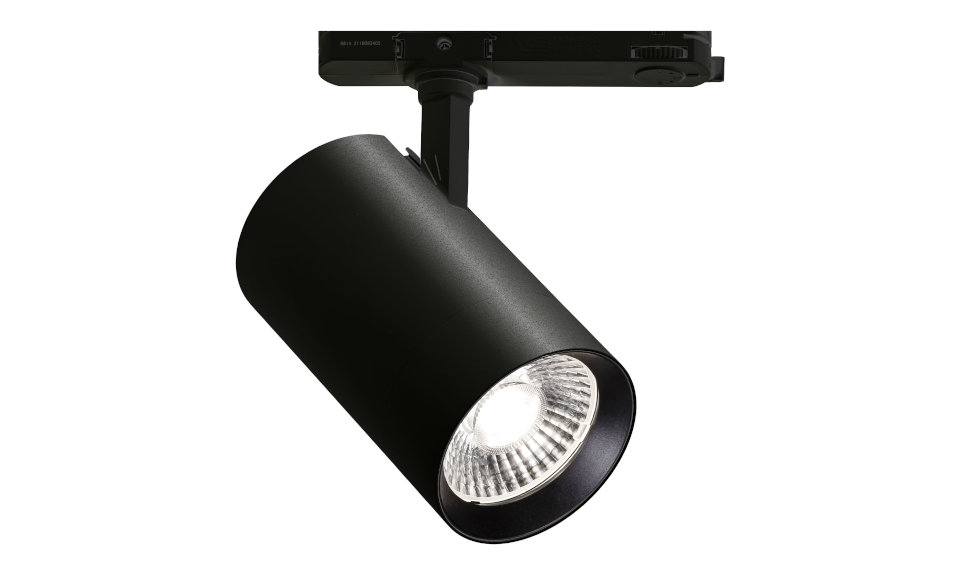

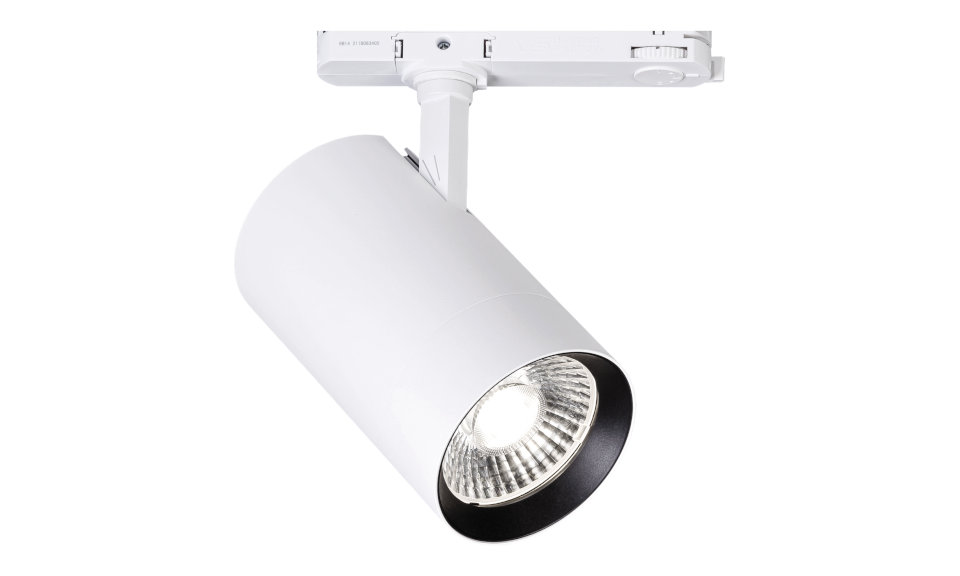

A contemporary track mounting spotlight with multiple beam options, colour temperature, and lumen output options, featuring a concealed in-track driver. TrackLED 5 is a professional grade spotlight making use of superior Ra90 colour rated LEDs for maximum colour accuracy in your architectural spaces. Finished in white or black, the TrackLED 5 also features swivel and tilt adjustment and is compatible with 3 circuit Global Trac for maximum flexibility.
Features
- Professional minimalist LED track mounted spotlight
- Features discreet in-track driver system
- Swivel and tilt adjustment for added flexibility
- Available with 3000 K or 4000 K LED
- High performance and high efficiency up to 139 llm/W
- CRI90 as standard for superior colour rendering accuracy
- 3 Reflector beam options available – 24° Narrow, 40° Medium and 60° Wide
- 4 output versions available for maximum flexibility
- Output range from 1400 to 4350 llm
- DALI-2 dimming option
- Bluetooth versions available on request
- Compatible with 3 circuit Global Trac
- White or black finishes available
- 5 year warranty
Applications
The TrackLED 5 range is particularly suited for use in the following applications and environments.
- Education
- Healthcare
- Hospitality
- Leisure
- Office
- Places of Worship
- Retail
Materials and Finishes
| Body | Die-cast Aluminium |
| Controller | Open Fronted, Aluminium Reflectors |
| Finish | White or Black |
Lifetime Data
| Model | L90/F50 |
|---|---|
| TrackLED 5 | 55 000 h |
All lifetime performance data is taken at +25 °C ambient.
- L Value
- % of initial lumens maintained after the specified time.
- F Value
- % of luminaires experiencing either gradual or total failure combined after the specified time.
Example
- L90/F50
90 % of initial lumens maintained after 55 000 h, 50 % of luminaires will have less than 90 % of initial lumens after 55 000 h through either gradual or total failure.
Photometric Data
We are proud to be official members of DIALux. You can use our ldt files without restriction within all your DIALux EVO projects. There's no need for a Pro or Unlock Non-Members subscription.
Download TrackLED 5 Photometric Data in EULUMDAT (ldt) format suitable for use in lighting calculation software such as DIALux or Relux.
TRL53140 N
| Lumen Output | 3500 llm |
TRL53140 M
| Lumen Output | 3600 llm |
TRL53140 W
| Lumen Output | 3250 llm |
Product Dimensions
TrackLED 5 Dimensional Diagram
| L1 | L2 | H | D | |
|---|---|---|---|---|
| 11.5W Fixed Output Versions | 170 | 158 | 155 | 90 |
| 11.5W DALI Versions | 212 | 158 | 155 | 90 |
| All Other Fixed Output Versions | 158 | 158 | 155 | 90 |
| All Other DALI Versions | 248 | 158 | 155 | 90 |
Track Polarity Options
Options and Variations
| Order Code | Description | Nom. Weight (kg) |
|---|---|---|
| TRL5 | TrackLED 5 Track Mount Spotlight | 0.7 |
Suffix Power Output
11
11.5 W Output
19
19.0 W Output
31
31.5 W Output
41
41.5 W Output
Suffix Colour Temperature
30
3000 K Colour Temperature LED
40
4000 K Colour Temperature LED
Suffix Driver
FO
Fixed Output Driver
DAL
Touch Dim / Digital Addressable Lighting Interface (DALI-2)
Suffix Optics
N
Narrow 24° Beam Reflector
M
Medium 40° Beam Reflector
W
Wide 60° Beam Reflector
Suffix Body Colour
B
Black Body Finish
W
White Body Finish
Track System Accessory
TRK31
Three Circuit Track 1 m Length
TRK32
Three Circuit Track 2 m Length
TRK3.ENDF
Three Circuit Track End Feed
TRK3.MIDF
Three Circuit Track Middle Feed
TRK3.CON
Three Circuit Track Straight Connector
TRK3.FCC
Three Circuit Track Flexible Corner Connector
TRK3.ACC
Three Circuit Track Adjustable Corner Connector
TRK3.LF
Three Circuit Track L Feed. Polarity 1
TRK3.LF2
Three Circuit Track L Feed. Polarity 2
TRK3.CRF
Three Circuit Track Cross Feed
TRK3.RHTF
Three Circuit Track Right Hand T Feed. Polarity 1
TRK3.RHTF2
Three Circuit Track Right Hand T Feed. Polarity 2
TRK3.LHTF
Three Circuit Track Left Hand T Feed. Polarity 1
TRK3.LHTF2
Three Circuit Track Left Hand T Feed. Polarity 2
TRK3.END
Three Circuit Track End Cap
TRK3.SUS2M
Suspension Kit 2 m
Track System Colour Accessory
B
Black Finish
W
White Finish
Miscellaneous Accessories
TRK3.BNDT
Bending Tool. Required if cutting custom track lengths on site
