Pegasus Black

Carousel Image
Carousel Image
Carousel Image
Carousel Image
Carousel Image
Carousel Image
Carousel Image
Carousel Image

Overview

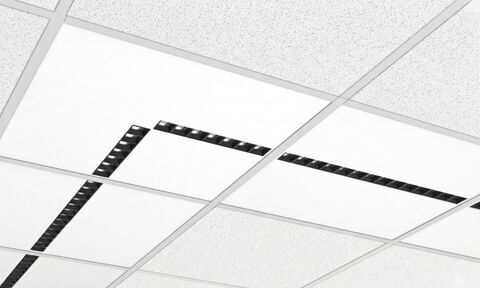

The Pegasus family of recessed LED luminaires present the latest innovation from Apollo Lighting. Combining a sleek low-profile design with the latest LED technology and black louvres designed to exceed UGR19 in low-glare environments, Pegasus Black offers a cost effective, efficient solution. Available in 3 different sizes and with colour customisable options on the body and front cover it offers a versatile platform.

Features

  • The latest innovation from Apollo Lighting in recessed LED luminaire technology
  • Available in 3 different sizes
  • Option to colour customise main body and central cover
  • Excellent glare control using louvred opalised lenses
  • High efficiency and high performance, with excellent luminance and uniformity
  • Designed for use in UGR19 environments
  • High CRI90+ colour rendering index
  • Available with 4000 K or 3000 K LED as standard
  • Available in 3 output options as standard, other output versions available on request
  • Low profile body design, ideally suited for areas with reduced ceiling spaces
  • Surface mounting kit option available on request
  • Plasterboard recessing kit option available
  • Quick and simple to install
  • Integrated emergency options
  • Sensor and Bluetooth options available on request for even greater control

Applications

The Pegasus Black range is particularly suited for use in the following applications and environments.

  • Education
  • Healthcare
  • Hospitality
  • Leisure
  • Living Care
  • Office
  • Places of Worship
  • Retail

The Pegasus Family

Materials and Finishes

Body0.9 mm Steel
ControllerOpalised lenses with Black Louvres
FinishWhite RAL9016

Photometric Data

inc 75 0 180 90 270

PEGB66H4K

Lumen Output3182 llm
SHR NOM1.25
SHR MAX1.404
SHR MAX TRANS1.485

Product Dimensions

Pegasus Black 66 Dimensional Diagram

L W R
LWR
Pegasus Black 6659559525

Product Dimensions

Pegasus Black 123 Dimensional Diagram

L W R
LWR
Pegasus Black 123119529525

Product Dimensions

Pegasus Black 126 Dimensional Diagram

L W R
LWR
Pegasus Black 126119559525

Lifetime Data

ModelL90/F10L80/F10L70/F10
Pegasus Black37 000 h>72 000 h>72 000 h

All lifetime performance data is taken at +25 °C ambient.

L Value
% of initial lumens maintained after the specified time.
F Value
% of luminaires experiencing either gradual or total failure combined after the specified time.

Example

L80/F10

80 % of initial lumens maintained after >72 000 h, 10 % of luminaires will have less than 80 % of initial lumens after >72 000 h through either gradual or total failure.

Options and Variations

Order CodeDescriptionLight SourceNom. Power (W)
PEGB66LPegasus 595 mm × 595 mm2600 lm LED with Black Louvres14.1
PEGB66MPegasus 595 mm × 595 mm3400 lm LED with Black Louvres18.3
PEGB66HPegasus 595 mm × 595 mm4000 lm LED with Black Louvres21.8
PEGB123LPegasus 1195 mm × 295 mm2600 lm LED with Black Louvres14.1
PEGB123MPegasus 1195 mm × 295 mm3200 lm LED with Black Louvres17.2
PEGB123HPegasus 1195 mm × 295 mm4000 lm LED with Black Louvres21.8
PEGB126LPegasus 1195 mm × 595 mm2600 lm LED with Black Louvres14.1
PEGB126MPegasus 1195 mm × 595 mm3300 lm LED with Black Louvres17.9
PEGB126HPegasus 1195 mm × 595 mm4000 lm LED with Black Louvres21.8

Suffix Colour Temperature

3K
3000 K Colour Temperature LEDs
4K
4000 K Colour Temperature LEDs

Suffix Body Colour

01
RAL9016 White Body

Suffix Driver

FO
Fixed Output Driver
DAL
Touch Dim / Digital Addressable Lighting Interface (DALI)

Emergency Option

E
Integral 3 h Maintained Emergency
EAD
Integral 3 h Maintained Addressable Emergency via DALI Emergency System
ELA
Integral 3 h Maintained Self Testing Emergency

Miscellaneous Accessories

PEG66/RECPB
Plasterboard Recessing Kit for Pegasus 595 mm × 595 mm Versions
PEG123/RECPB
Plasterboard Recessing Kit for Pegasus 1195 mm × 295 mm Versions
PEG126/RECPB
Plasterboard Recessing Kit for Pegasus 1195 mm × 595 mm Versions

Order Code Builder

Use the options below to construct and refine your required luminaire code and desired specification. Items marked * are required on all variations.

Miscellaneous Accessories

Classifications

IP30
SDCM 3
